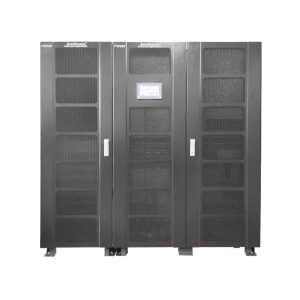

The EverExceed PowerChampion Low Frequency Industrial UPS Series is a configurable Uninterruptible Power Supply (UPS) system designed with a true industrial modular architecture to deliver maximum power performance. It combines a proven SCR-based conservative design with advanced digital control and battery management technology, ensuring exceptional reliability under the most demanding electrical and environmental conditions.

The system consists of a rectifier/charger, inverter, static bypass, maintenance bypass, rectifier isolation transformer, inverter isolation transformer, bypass line isolation transformer, automatic line voltage regulator, DC distribution, AC distribution, as well as control and monitoring systems. The inverter AC output supplies critical loads, while the battery bank is connected between the inverter input and the rectifier/charger output through a battery isolation MCB. Under normal operation, the AC input powers the rectifier, while the bypass circuit draws power from the same source to maintain uninterrupted power to critical loads during bypass or maintenance mode.

Brand:
EverExceed

Model:
PW10–PW1200

Rated Frequency:
50Hz / 60Hz

Efficiency:
Up to 92%

Applications:
Substations, Hydropower Plants, Power Transmission, Manufacturing, Transportation, Mining, Refining, Petrochemical Plants, Oil & Gas Facilities, Hospitals, and Airports. Suitable for applications including Gas Turbine Control, Switchgear Tripping, Signaling Systems, Alarm Systems, Emergency Lighting, and Distributed Control Systems (DCS).

Certifications:
IEC 62040-1, IEC 62040-2, IEC 62040-3, CE, TLC

Power Range:
10kVA–1200kVA
